●直接作用減泄壓閥使用引導作用之動作,只選其一。
●依壓力差和結構大小決定內漏(33~50cc/min)。
●由于快速反應和低內漏，閥較適合儲能器和剎車回路。
●油口3的壓力不超過210bar。
●Direct acting reducing/relieving valve used us altenative to pilot operated version.
●Internal leakage(33～55cc/min)depeding on pressare differential and frame size
●Due to fast response an low leakage valve is well suited for accumulator and brake circuits
●Maximum pressure at port 3 (tank) is 210bar
注:閥孔型號:Valve Cavity:C063
成型刀具 Cavity Tools:CTD6-D.CTD6-R
請參閱 Reference P98

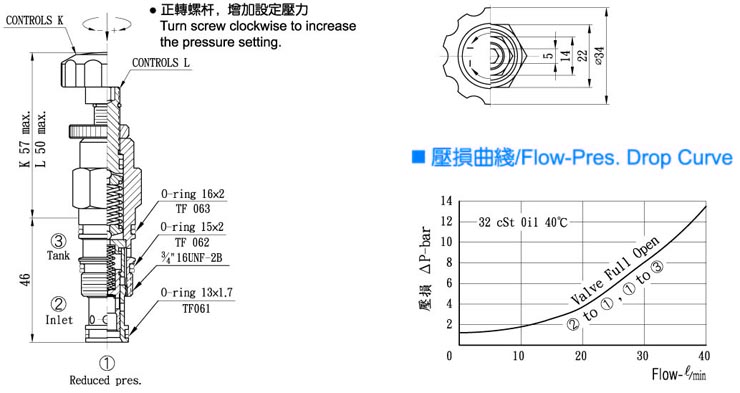

型號 Model	閥系說明 Description	額定流量 Rated Flow	最高壓力 Max.pressure	重量 Weight
CRR-063	引導型 Pilot operated 平衡滑柱式 Balanced spool	30ℓ/min	315bar	K:0.17Kg L:0.14Kg

CRR	063	L	10	N
系列編號： 減泄壓閥 Series No. Reducing/Relieving Cartridge Valves	閥孔型號 Cavity Size	調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj.	壓力調整范圍 Adjustment Ranges. 10-3.5 to 100 bar. 20-7 to 210 bar.	油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton.
