螺紋式插裝流量閥-流量調整附止回閥
詳情介紹
特性/Characteristic:
●功能參數同等于雙向節流閥但包含一個回轉方向的自由流單向閥。
●依靠他們?cè)诨芈分械奈恢茫商峁┝咳肓砍龊团陨炜刂啤?br />●孔口流量正比壓降平方根(由于非補償設計)因此只適合固定負載,變動負載要用壓力補償閥。
●Performance parameters are sinilar to the bi-directional reedle valve but inelude a high capacity free flow check in the return directon.
●Dependant on their position in the circuit they can provide meter-in meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
●依靠他們?cè)诨芈分械奈恢茫商峁┝咳肓砍龊团陨炜刂啤?br />●孔口流量正比壓降平方根(由于非補償設計)因此只適合固定負載,變動負載要用壓力補償閥。
●Performance parameters are sinilar to the bi-directional reedle valve but inelude a high capacity free flow check in the return directon.
●Dependant on their position in the circuit they can provide meter-in meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CNC-082 | 流量調整附止回閥 Flow regulate with reverse free flow check. |
082:30ℓ/min 102:60ℓ/min 122:100ℓ/min |
250bar | 0.82:K:0.15Kg L:0.13Kg 102:K:0.19Kg L:0.17Kg 122:K:0.33Kg L:0.31Kg |
選購指南/How to order:
| CNC | 082 | L | 2.0 | N |
| 系列編號： 流量閥 Series No. Flow Control Valves |
閥孔型號 Cavity Size C082 C102 C122 |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. |
單向閥開閥壓 Cracking pressure 0.2-0.2 bar 2.0-2.0 bar |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

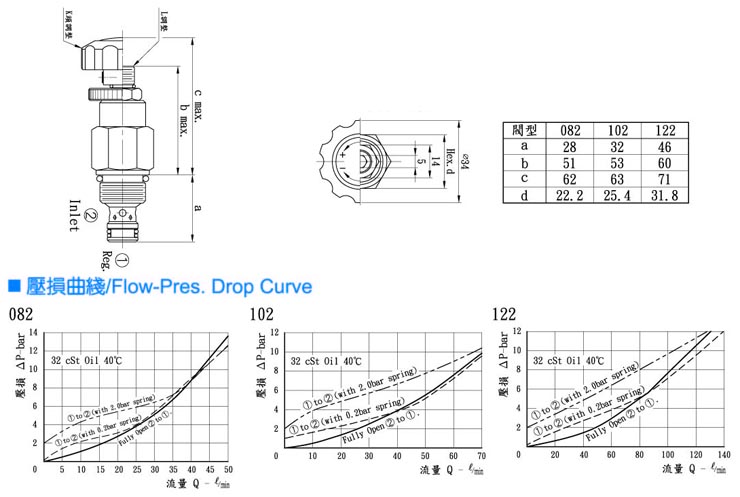

尺寸圖/Dimensions(mm)
產品型號
