螺紋式插裝節流閥-微調型、全閉式
詳情介紹
特性/Characteristic:
●依賴它們?cè)诨芈分械奈恢每勺髁咳耄砍觯陨炜刂啤?br />●孔口流量正比壓降平主根(由于非補償設計)因此只適合固定負載,變動負載要用壓力補償閥。
●流路可正反向由1到2口或2到1口。
●當節流閥關閉時可關閉流量,關閉時零泄漏。
●Dependant on their position in the circuit they can provide meter-in,meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
●Flow path is bi-directional i.e.1 to 2 or 2 to 1.
●Positive shut off of flow when needle is closed.
注:閥孔型號:Valve Cavity:C102
成型刀具 Cavity Tools:CT20-D.CT20-R
請參閱 Reference P92
●流路可正反向由1到2口或2到1口。
●當節流閥關閉時可關閉流量,關閉時零泄漏。
●Dependant on their position in the circuit they can provide meter-in,meter-out or bleed-off control.
●Needle valves are non-compensating devices the orifice sige will regu late the flow through the valve in proportion to the sgure root of the pressure differential across port 1 and 2,therefore naking these valves suitable only where the load remains constant.
●Flow path is bi-directional i.e.1 to 2 or 2 to 1.
●Positive shut off of flow when needle is closed.
注:閥孔型號:Valve Cavity:C102
成型刀具 Cavity Tools:CT20-D.CT20-R
請參閱 Reference P92
性能表/Specification:
| 型號 Model |
閥系說明 Description |
額定流量 Rated Flow |
最高壓力 Max.pressure |
重量 Weight |
| CNV-102 | 直調型,全閉式 Direct acting,, positiver shut off. |
60ℓ/min |
250bar | L:0.15Kg K:0.19Kg |
選購指南/How to order:
| CNV | 102 | L | 60 | N |
| 系列編號： 節流閥 Series No. Needle Valves |
閥孔型號 Cavity Size |
調整方式 Controls L-螺桿調整 Standard Screw Adjustment K-旋鈕調整 Hand Knob & Locknob Adj. |
流量調整范圍 Flow ranges 60-0 to 60 ℓ/min |
油封材質 Seals:N-丁腈橡膠 Buna N. V-氟橡膠 Viton. |

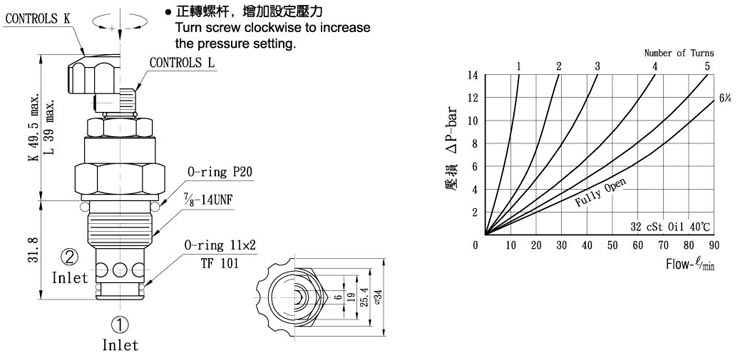

尺寸圖/Dimensions(mm)
